     Home > Screw-rod milling machine
    Screw-rod milling machine
    Release time: 2021-01-06 11:02:34 Number of read: 28284 second





    Type

    Max. dia. And Max. length to be machined

    rotational speed of milling head

    range of lead (pitch) to be machined

    overall dimensions(L×W×H)and Net weight

    workpiece to be machined

    main usage

    SB6110A/PC Semi-automatic screw rod
    milling machine

    M120×50(internal threads)
    M100×80(external threads)

    75-600rpm(10 grade)

    0.75-6mm

    2910×1163×1290mm

    5500kg

    thread

    It's a special machine for milling short interal or external threads by means of comb

    cutters.

    SB6120A/PC Semi-automatic screw rod
    milling machine

    M200×50(internal threads)
    M150×50(external threads)

    210-2320rpm

    0-3mm

    2397×1123×1260mm

    5000kg

    thread

    It's a special machine for milling short interal or external threads by means of comb

     cutters.

    SZ6212A/1 Automatic thread milling machine

    M160×700









    It is specially used for cutting internal threads on nose cone of shells.

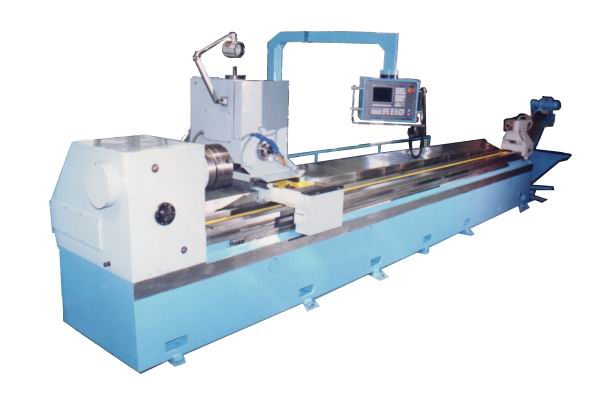

    SK6130 NC thread milling machine

    300mm×4500mm(60002500、1000)

    60-320rpm(stepless)

    1-1000mm

    7990×1930×2165mm

    16000kg

    thread

    screw rod

    worm

    It can cut all kinds of threads.such as :lead screws,sinple or multi-start worms and industrial pump rotors with a flaky milling cutter or a profile cutter.It also can make threads on spindle nose with a comb milling cutter.The cutting length is decided by customers

    S6125 Thread milling machines

    φ250×1350mm

    40-250rpm(9 grade)

    1-500mm

    3185×1394×1230mm

    7000kg

    thread

    screw rod

    worm

    It can cut threads with common or coarse pitch,such as :driving lead screws and sinple or multi-start screws by using a flaky milling cutter.It can also hob straight-toothed spline shaft gears by hobs or spindle nose by comb milling cutters.

    SK6220 NC thread milling machine

    M200×50(internal threads)
    M150×80(external threads)

    150-2400rpm(stepless)

    0-6mm

    3350×1835×2100mm

    7000kg

    thread



    It's a special machine for making short internal(or external threads with comb milling cutters. .

    SK6330 NC screw rod milling machine

    φ300×4500(60002500、1000)

    150-1300rpm(stepless)

    1-1000mm

    7990×1930×2165mm

    16000kg

    special screw rod

    It can cut different threads with changeable lead or bottom diameter,constand lead

    or bottom diameter ,single or multi start,multi-section with different pitches,and

    different screw rod of taper thtreads.
